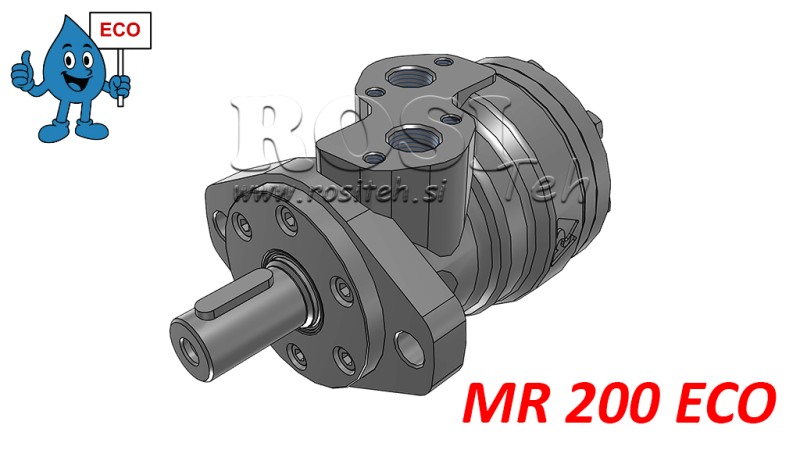

HYDRAULIK-ÖLMOTOR MR 200 ECO (ALSG2-L-200)
| Technical data | |
| Supplier: | China |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Shaft diameter: | 25 mm |
| Oil flow: |
constant flow 60 L/min, intermittent 75 L/min |
| Connection thread: | 1/2" |
| Temperature range: | from -40°C to 140 °C |
| Torque: |
constant torque 38,6 daNm, intermittent 44,2 daNm |
| Revolutions: |
constant revolutions 262 rpm, intermittent 278 rpm |
| Pressure drop: |
constant pressure 160 bar, intermittent 200 bar |
| Power: |
constant power 11 kW, intermittent 13 kW |
| cm³/revolution: | 194,5 |
| Weight: | 8 kg |
DESCRIPTION – HYDRAULIC MOTORS MR ECO
MR type hydraulic motors are compact, robust, and reliable with an orbital design. Due to their simple construction and high efficiency, they are suitable for a wide range of applications.
The ECO version maintains the standard quality and reliability while being more affordable, as trusted producers manufacture it without the added brand premium.
They are characterized by:
- high displacement at low speeds,
- smooth and quiet operation,
- long service life thanks to high-quality materials and seals,
- possibility of operation in both directions of rotation,
- low oil consumption relative to output power,
- ECO version: same quality and performance at a lower price.
MR hydraulic motors are mainly used in agricultural, forestry, and construction machinery, as well as in industry, where reliable and efficient conversion of hydraulic energy into mechanical motion is required, with an even greater emphasis on sustainable energy use now.
|
L |
L1 |
|
|
(mm) |
(mm) |
|
|
MR 50 ECO |
140 |
10 |
|
MR 80 ECO |
146 |
16 |
|
MR 100 ECO |
150 |
20 |
|
MR 125 ECO |
155 |
25 |
|
MR 160 ECO |
161,5 |
30,5 |
|
MR 200 ECO |
170 |
38,1 |
|
MR 250 ECO |
180 |
50 |
|
MR 315 ECO |
192 |
62 |
|
MR 400 ECO |
204 |
74 |
